Product Overview

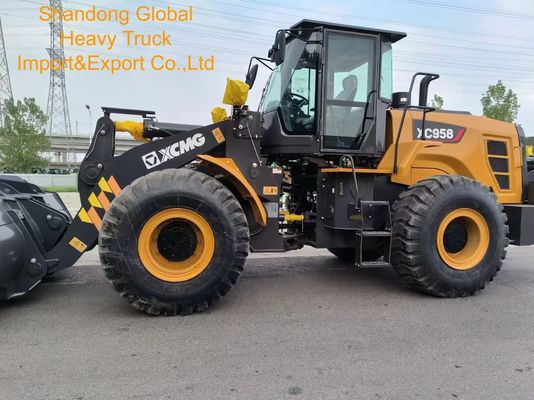

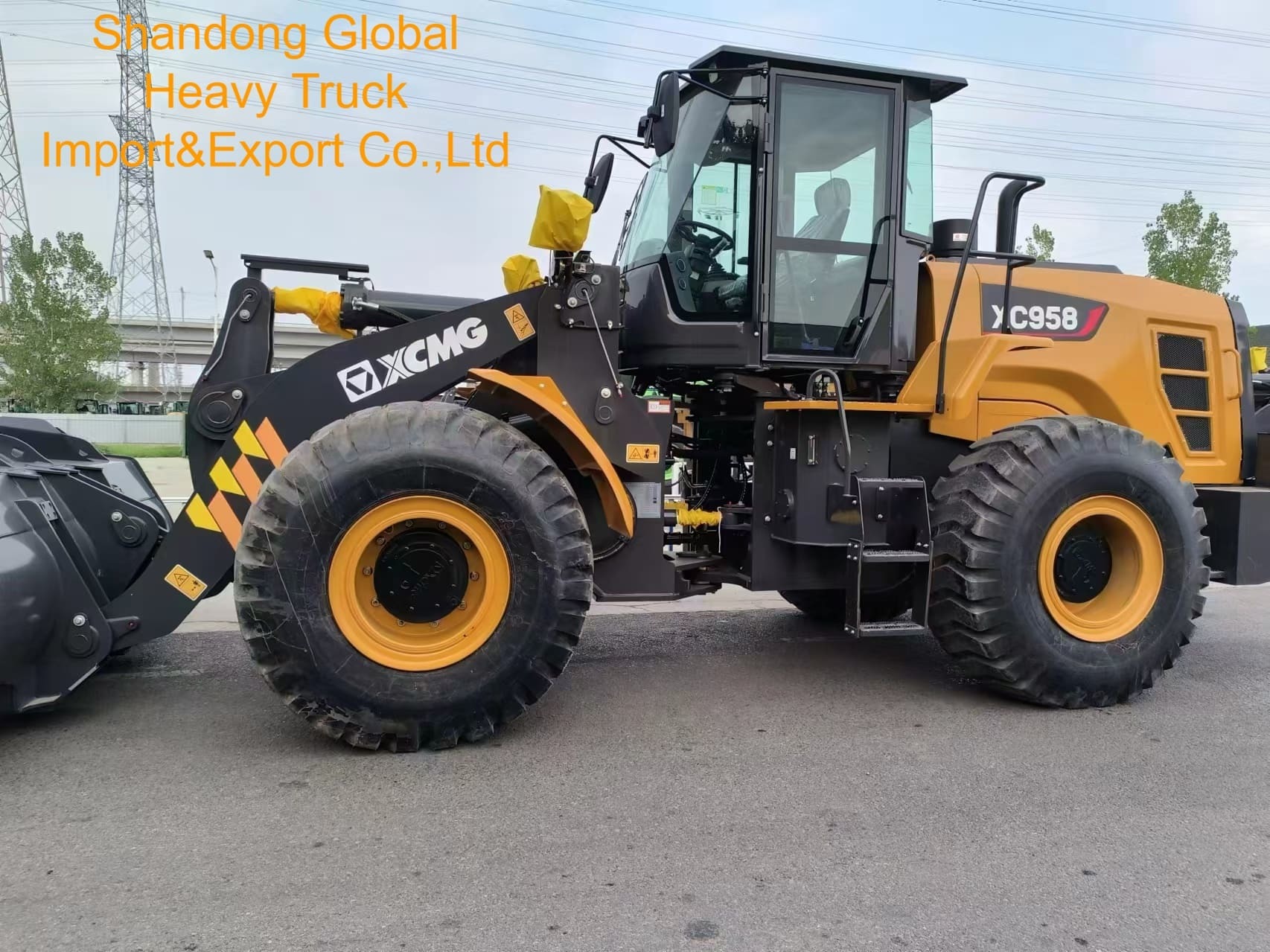

The XCMG XC958 is a new-generation 5.5-ton class wheel loader from XCMG’s XC9 series, engineered for heavy-duty performance in mining, construction, quarrying, sand yards, ports, and bulk material handling. Combining high power, low fuel consumption, and exceptional comfort, this loader delivers maximum productivity with minimum operating costs. Available brand new at factory direct prices, with optional Euro V emission configuration for global compliance.

Key Specifications

Key Features & Advantages

• Powerful Weichai Engine – High-torque electronic control high-pressure common-rail engine with ECU-controlled fuel injection delivers high combustion efficiency, low fuel consumption, and low emissions. Three power modes (light load, medium load, heavy load) optimize fuel savings for any working condition. Torque reserve is large and power is strong.

• XCMG Heavy-Duty Platform – Classic heavy-duty structural platform with long wheelbase and equal wheelbase layout for stable operation and flexibility. The reinforced 6-ton front axle and 5.5-ton rear axle deliver 10% higher load-bearing capacity and bending resistance.

• High Efficiency & Fast Cycle Times – Double-pump confluence hydraulic system provides strong cylinder power, fast boom lifting, and quick loading speed. Breakout force reaches 175 kN, traction force reaches 165 kN, with total cycle time ≤ 10 seconds.

• Optimized Bucket Design – Standard 3.0–3.2 m³ bucket features optimized shape for easy penetration and high fill rate. Optional buckets from 2.5 m³ to 5.0 m³ for different material densities (rock, sand, coal, grain).

• Superior Operator Comfort – XC9 series pressurised cab with air conditioning, low noise, dust-proof, and heat-insulation design. Spacious interior with storage compartments, cup holder, charging base, and full-view rear glass for safe reversing. The cab tilts fully for easy access to engine and hydraulic components.

• Easy Maintenance – Flip-up large side door structure with wide opening angle for easy engine and radiator access. Centralised oil drainage and one-stop maintenance design reduces service time and costs.

• Global Compliance – Available with Euro V emission engine, ZF automatic transmission, ZF wet drive axle, and electro-hydraulic load-sensing hydraulic system – reaching international advanced levels in reliability, energy saving, and efficiency.

Optional Attachments – Multi-Functionality

The XC958 supports a wide range of attachments via a quick-change coupler, allowing fast switching between different tools to meet diverse customer needs:

• Buckets: Rock bucket (2.5 m³), 4-in-1 bucket, light material bucket (up to 5.0 m³ for coal/grain), high-dump bucket

• Material Handling: Pallet forks, sliding forks, log grapple, pipe grapple, grass clamp

• Specialised Attachments: Snowplow, sweeper, lifting appliance

• Quick-Change System: Hydraulic quick coupler for attachment swaps in minutes

Applications

• Mining – Ore and overburden handling, coal yards, steel plants

• Construction – Sand, gravel, aggregate, earthmoving

• Ports & Logistics – Bulk material loading, container handling

• Quarries & Sand Yards – Truck loading, stockpile management

• Road & Infrastructure – Base material loading, asphalt plant feeding

• Agriculture – Grain, feed, fertilizer, silage handling

• Waste Management – Recycling and waste material handling

FAQ – Frequently Asked Questions

Q1: What engine does the XC958 use?
A: The XC958 is powered by a Weichai diesel engine with electronic control high-pressure common-rail technology, rated at 162–170 kW (approx. 217–228 HP). Weichai is China's leading heavy-duty engine manufacturer, known for reliability, fuel efficiency, and worldwide parts availability.

Q2: What is the standard bucket capacity?
A: The standard bucket capacity is 3.0–3.2 m³. Optional buckets range from 2.5 m³ (rock bucket) to 5.0 m³ (light material bucket for coal or grain). The bucket can be selected based on material density and working conditions.

Q3: What is the price for a brand new XCMG XC958?
A: Factory direct price FOB China main port (Shanghai, Qingdao, Tianjin) ranges from approximately USD 34,000 – 45,000, depending on configuration (bucket type, tires, emission standard, optional features). Contact us for a firm quotation based on your specific requirements.

Q4: Is the XC958 available with Euro V emission standard?
A: Yes. The XC958 can be supplied with Euro V emission engine, ZF automatic transmission, ZF wet drive axle, and electro-hydraulic load-sensing hydraulic system. Tier 3 / China III is also available for markets with less strict regulations. Please specify your local emission requirements when ordering.

Q5: Can I get right-hand drive (RHD) or left-hand drive (LHD)?
A: The XC958 is manufactured as left-hand drive (LHD) as standard. RHD is available on request with extended lead time. Please confirm when ordering.

Q6: What attachments are available for the XC958?
A: A wide range of optional attachments includes: rock bucket, 4-in-1 bucket, light material bucket, pallet forks, sliding forks, log grapple, pipe grapple, grass clamp, snowplow, sweeper, lifting appliance, and hydraulic quick-coupler system.

Q7: What is the fuel consumption?
A: Under normal working conditions (loading sand/gravel, 40–50 cycles per hour), fuel consumption is approximately 12–16 L/hour. The ECU-controlled high-pressure common-rail system and three power modes (light/medium/heavy load) optimise combustion for maximum fuel efficiency.

Q8: Do you provide spare parts?
A: Yes. We stock genuine XCMG and Weichai parts – filters, engine components, hydraulic seals, tires, buckets, and more. For bulk orders (3+ units), we include a starter parts kit.

Q9: How is the loader shipped?
A: Shipped in a 40-foot flat rack or open-top container, partially disassembled (bucket removed). Main ports: Shanghai, Qingdao, Tianjin, Guangzhou. Transit time: 25–45 days to most African, Asian, Middle Eastern, and South American ports.

Q10: What documents do you provide for customs?
A: Commercial invoice, packing list, Bill of Lading, Certificate of Origin (“Made in China”), export declaration, engine/chassis number verification, and emission compliance statement (Tier 3 / Euro V) as required.

Q11: What warranty do you offer?
A: 12 months or 2,000 operating hours on engine, transmission, hydraulic system, and axles. Extended warranty options available.

Q12: Can I inspect the loader before buying?
A: Yes. We provide factory photos, pre-delivery inspection videos, and live video walkaround via WhatsApp / WeChat. You are also welcome to visit our facility in Jiangsu Province (XCMG headquarters).

Q13: What is the minimum order quantity?
A: 1 unit is accepted. Volume discounts available for 2, 3, 5+ units.

Q14: How long from order to shipment?
A: Stock unit: 7–10 days for loading. Custom configuration: 20–30 days. Sea freight: 25–45 days.

Q15: Is the XC958 suitable for heavy rock applications?
A: Yes. With the optional rock bucket (thicker wear plates, reinforced cutting edge, additional guarding) and 185 kN breakout force, the XC958 is well-suited for quarry and mine rock handling. For extreme rock applications, we recommend the reinforced frame and heavy-duty tyre options.

Q16: Can you paint the loader in my company colours?
A: Yes. For orders of 3+ units, we offer custom painting (RAL code or sample). Stock units are standard XCMG yellow.

Order Process (In Stock Units)

1. Select configuration – bucket type, tires, emission standard (Tier 3 / Euro V), attachments, steering (LHD/RHD)

2. Request stock unit photos & video – we send actual unit images and a walkaround video

3. Proforma invoice – issued with full specifications and price

4. Deposit – 30% by T/T

5. Final inspection – we send pre-shipment video for your approval

6. Balance payment – 70% before loading

7. Loading & shipment – within 7–10 days

8. Delivery – 25–45 days to your port
