Aperçu ProduitsCamion à benne basculante résistant

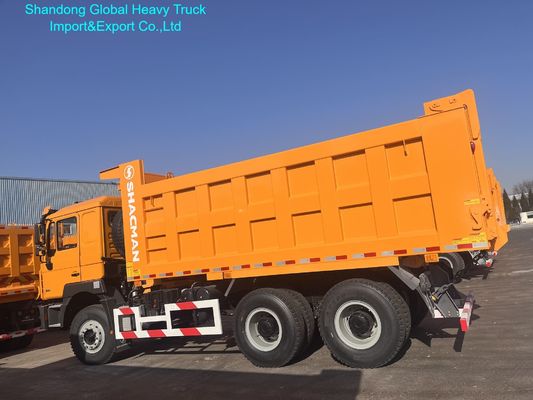

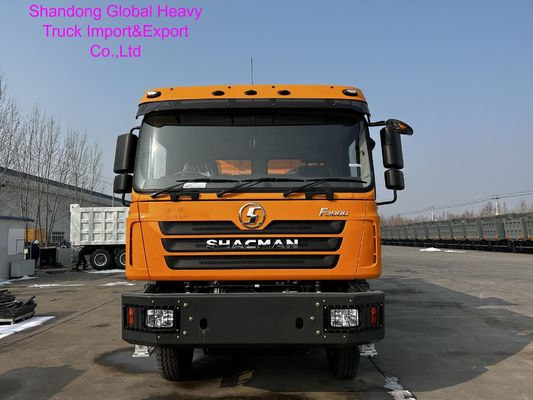

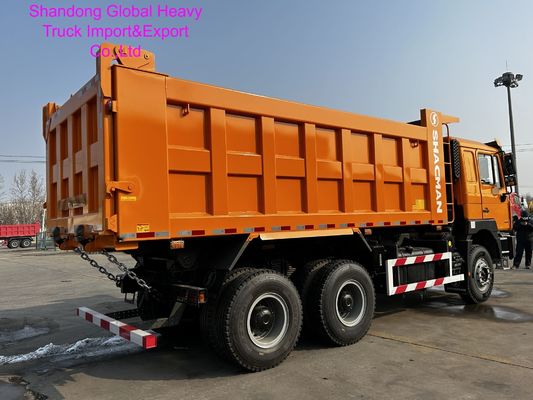

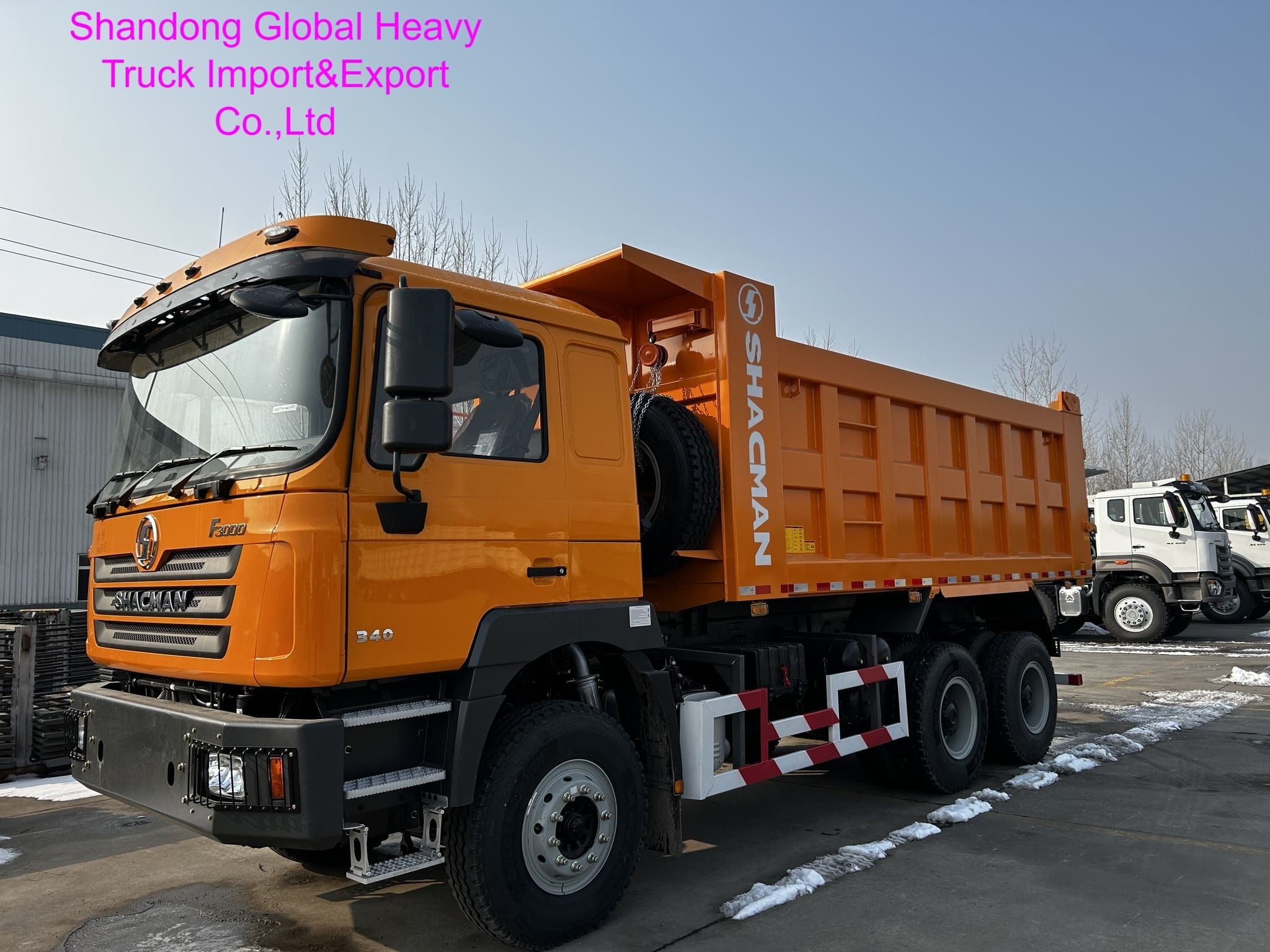

Shacman F3000 400HP Heavy Duty Dump Truck with 400L Fuel Tank Air Suspension Seat and U-shape Dump Body

Shacman F3000 400HP Heavy Duty Dump Truck with 400L Fuel Tank Air Suspension Seat and U-shape Dump Body

  • Shacman F3000 400HP Heavy Duty Dump Truck with 400L Fuel Tank Air Suspension Seat and U-shape Dump Body
  • Shacman F3000 400HP Heavy Duty Dump Truck with 400L Fuel Tank Air Suspension Seat and U-shape Dump Body
  • Shacman F3000 400HP Heavy Duty Dump Truck with 400L Fuel Tank Air Suspension Seat and U-shape Dump Body
  • Shacman F3000 400HP Heavy Duty Dump Truck with 400L Fuel Tank Air Suspension Seat and U-shape Dump Body
Shacman F3000 400HP Heavy Duty Dump Truck with 400L Fuel Tank Air Suspension Seat and U-shape Dump Body
Détails sur le produit:
Lieu d'origine: CHINE
Nom de marque: shacman
Certification: iso,
Numéro de modèle: F3000
Conditions de paiement et expédition:
Quantité de commande min: 1 pc
Prix: Négociable
Détails d'emballage: Nu
Délai de livraison: 40 jours de travailleur
Conditions de paiement: L / C, T / T
Capacité d'approvisionnement: 500 unités / mois
Contact
Description de produit détaillée
Modèle n °: Shacman F3000 6 * 4 Camion-benne Puissance: 400 ch
Pilotage: Gauche/entraînement de main droite Roue d'entraînement: 6*4
Type de traction: HW19710 Climatiseur: Avec
Condition: Nouveau Siège du conducteur: Siège à suspension pneumatique
Mettre en évidence:

400L Fuel Tank Dump Truck

,

Air Suspension Seat Heavy Duty Dump Truck

,

U-shape Dump Body Tipper Truck

Shacman F3000 10 Wheeler 380HP Tipper Truck 30cbm 30tons 6X4 New Dump Truck
Product Overview

The Shacman F3000 6x4 Dump Truck is engineered for heavy-duty applications in construction, mining, and logistics. With a powerful 400HP engine, reinforced chassis, and large payload capacity, it is ideally suited for Lagos, Nigeria's demanding road and project conditions.

Main Specifications
  • Brand: Shacman
  • Model: F3000 6x4 Dump Truck
  • Drive Type: 6x4 (Left Hand Drive, optional Right Hand Drive)
  • Engine: Weichai WP10.400E32 / 400HP, Euro II/III emission standard
  • Horsepower: 400 HP
  • Displacement: 9.7L
  • Transmission: Fast brand 10JSD/12-speed manual gearbox
  • Clutch: Reinforced single dry plate, 430 mm
  • Axle:
    • Front Axle: 7.5T
    • Rear Axle: 16T double reduction, hub reduction optional
    • Ratio: 4.77 / 5.73 available
  • Suspension: Leaf spring, reinforced, front 9 + rear 12
  • Frame: 8 + 8 + 8 mm double-layer high-strength steel
  • Steering: Hydraulic power steering, ZF technology
  • Brakes: Air brake system, ABS optional
  • Cabin: F3000 high-roof cabin with A/C, sleeper, adjustable seats
  • Fuel Tank: 400L aluminum alloy
Dump Body
  • Type: U-shape or square box
  • Box Size: 5600-5800 × 2300 × 1500 mm (customizable)
  • Material: High-strength steel Q345 / NM450
  • Thickness: Bottom 8-10 mm, side 6-8 mm
  • Capacity: 25-30 tons payload
  • Hydraulic System: HYVA brand cylinder for fast lifting
Dimensions & Weight
  • Overall Dimensions (L × W × H): 8614 × 2490 × 3450 mm
  • Wheelbase: 3775 + 1400 mm
  • Curb Weight: 12,500-13,000 kg
  • GVW (Gross Vehicle Weight): 25,000-30,000 kg
  • Max Speed: 80-90 km/h
Applications in Lagos, Nigeria
  • Hauling sand, gravel, and asphalt for road projects
  • Quarry and mining transport (limestone, granite)
  • Bulk material movement in ports (Apapa, Lekki)
  • Waste disposal and municipal projects
Frequently Asked Questions
Q1: Can the truck handle Lagos bad road conditions?
Yes, the reinforced chassis, high ground clearance, and heavy-duty suspension make it suitable for both city and rural roads.
Q2: How much fuel does it consume?
Average fuel consumption is 35-38 liters per 100 km, depending on load and terrain.
Q3: Are spare parts available in Nigeria?
Yes. Shacman has authorized spare parts dealers and service partners in Lagos and across Nigeria.
Q4: What about after-sales support?
We provide remote technical guidance, local workshops in Lagos, and quick spare parts supply.
Q5: Can the dump body be customized?
Yes. Box size, thickness, and material can be adjusted based on project requirements.
Q6: What is the delivery time?
Usually 30-40 days after order confirmation.
Shacman F3000 400HP Heavy Duty Dump Truck with 400L Fuel Tank Air Suspension Seat and U-shape Dump Body 0
